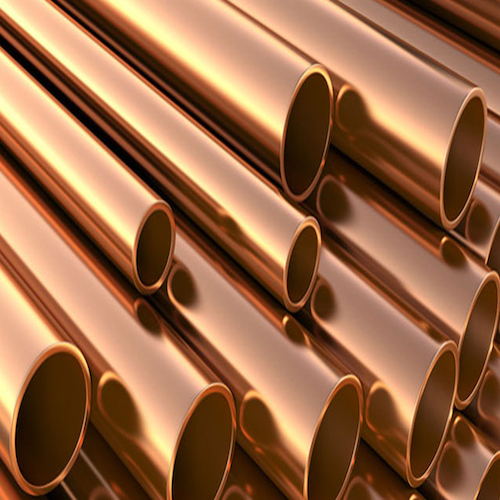

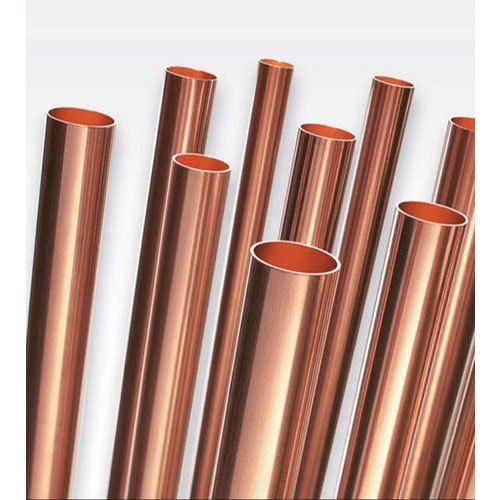

Nickel Copper Tube

No.17
Standard: GB/T 8890, ASTM B111, BS2871, JIS H3300, DIN1785 Diameter: 5mm - 80mm Wall thickness: 0.5mm - 15mm Length: 0.5m - 25m
  • Nickel Copper Tube
  • Nickel Copper Tube
  • Nickel Copper Tube
  • Nickel Copper Tube
  • Nickel Copper Tube

Description

Guangdong Metal Corporation is a leading nickel copper tube supplier and manufacturer.

Nickel copper alloy is a copper-based alloy with nickel as the main additive element. It is silver-white and has a metallic luster, hence the name white copper. The copper and nickel can be infinitely solid-solved with each other to form a continuous solid solution, that is, a constant α--single phase alloy regardless of the ratio of each other. When nickel is melted into red copper and the content exceeds 16%, the color of the alloy produced becomes white as silver, and the higher the nickel content, the whiter the color. The content of nickel in white copper is generally 25%.



  • 1) Grade: C70600, C71500, C71640, C70400

    2) Diameter: 5mm - 80mm

    3) Wall thickness: 0.5mm - 15mm

    4) Length: 0.5m - 25m

    5) Temper: O61, H55, HR50

    6) Standard: ASTM B111, EN

    • 1) High toughness

      2) High strength

      3) High stability

      4) Excellent elasticity with fine silver gloss

      5) Good fatigue

      6) Rust and corrosion resistance properties

      7) Good deep-drawing performance

  • 1)Condensers

    2)Radiators

    3)Chemical equipment

    4)Sanitation

    5)Heat exchange shells

    6)Distiller tubes

    7)Aerospace industry

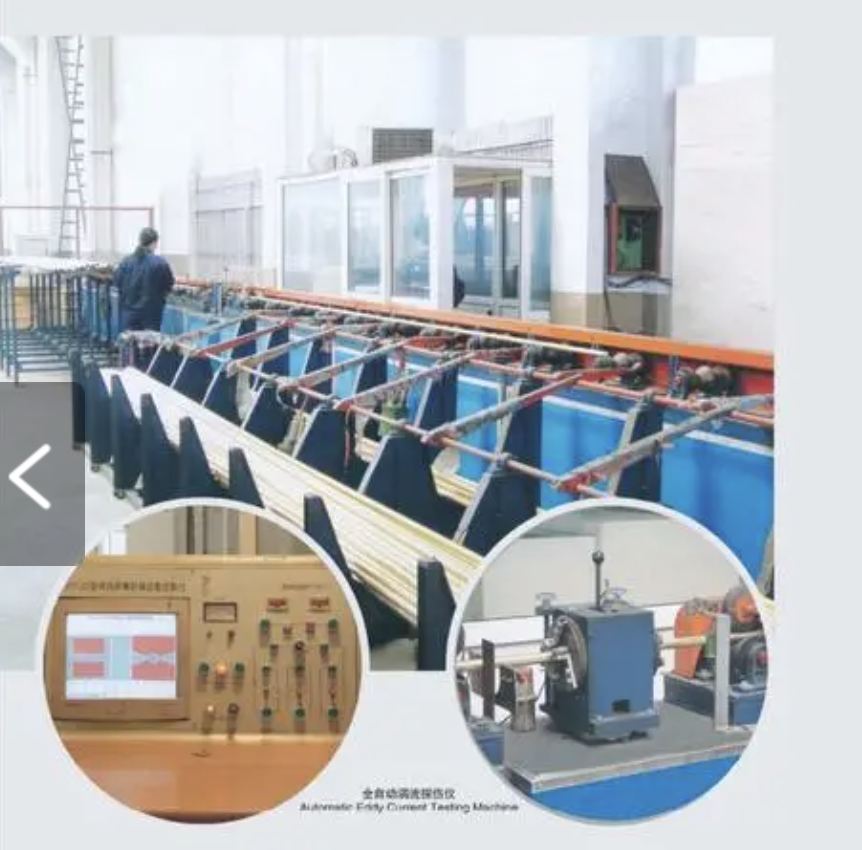

  • 1.Online Eddy-Current Test

    2.Spectrum Test

    3.Hardness Test

    4.Tensile Strength Test

    5.Elongation Test

    6.Automatic Hydrostatic Pressure Test
